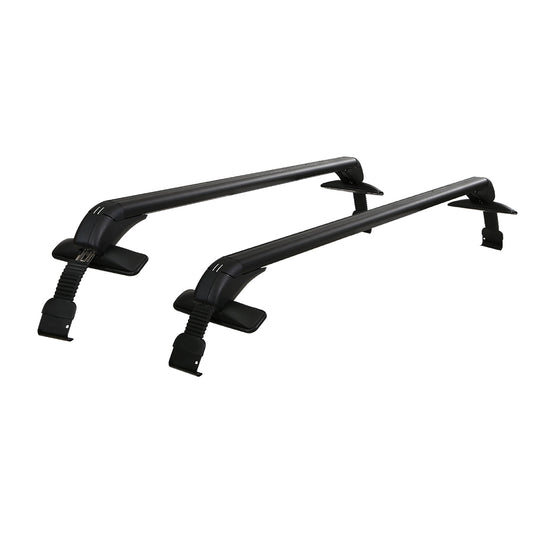

Roof Rack Cross Bars

Cross bars provide a mounting base for compatible cargo equipment, but their feet and brackets must suit the vehicle roof.

Shop the collection

Cross bars provide a mounting base for compatible cargo equipment, but their feet and brackets must suit the vehicle roof. Bare roofs, rain gutters, raised rails and fixed points need different designs. This range also includes soft roof pads, so choose the mounting method before comparing width, locks or carrying capacity.

Identify rails, gutters or a bare roof

Raised rails have space beneath them; flush rails, rain gutters and fixed mounting points use different attachments. A clamp designed for a door frame is not a general substitute for a rail foot. Photographs of the roof from the side and above can help identify the correct system.

Model-specific kits can depend on year and trim. Do not rely on a model name alone where a vehicle has several roof arrangements. If the product title and detailed fitment disagree, obtain a confirmed specification before buying.

Measure support spacing and accessory compatibility

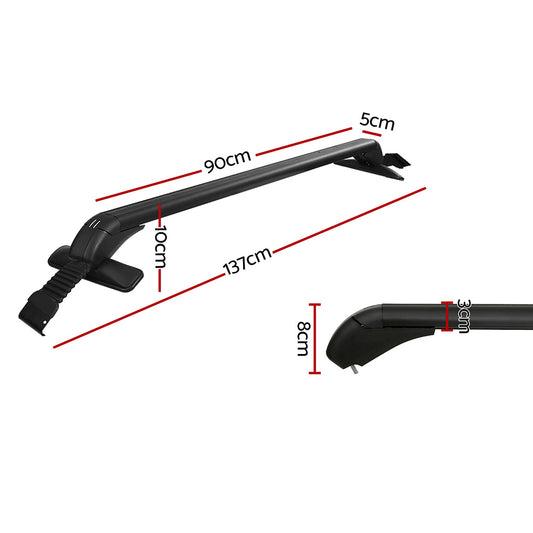

Bar length is not the same as the distance between the feet or the usable width between them. Record the intended support spacing for the load and the clamps or channel fittings that an accessory needs. A cargo box or bike mount may specify an allowable bar size and spacing.

Soft roof pads are a different system from fixed cross bars. They may be intended to support a particular kind of load and route straps differently; do not treat them as a base for any hard-mounted accessory just because the advertised capacity seems sufficient.

Use the complete driving limit

The allowable load depends on the vehicle and the complete roof system. Deduct the rack and accessory weight from the applicable limit before loading cargo, and use driving rather than stationary figures for travel. Off-road conditions may introduce a separate limit.

A roof-bar rating belongs to an exact kit and mounting arrangement. If a title and specification disagree about load or vehicle years, confirm both with the supplier before ordering; neither the larger number nor the wider year range is a safe assumption.

Allow clearance after installation

Check whether the tailgate, sunroof or other roof equipment can move as intended. Measure the new overall height and consider the space needed to lift the load onto the bars. Removable bars may be practical when the car only carries bulky gear occasionally.

Keep the fitting instructions with the vehicle so that fasteners and adjustment points can be checked using the specified method. Locks help manage removal of components; they do not replace correct mounting or load restraint.

Guides and product details: Rhino-Rack roof-load calculator · Rhino-Rack vehicle fitment guide · Universal Car Roof Rack 1450mm Cross Bars Aluminium Silver Adjustable Brackets Carrier 90kg · Roof Rack Cross Bars, Compatible with Toyota RAV4 2020-2023, 160lbs Load Capacity, Aluminum… · GIANTZ Kayak Roof Rack for Car, Universal Soft Roof Rack Pads for Surfboard SUP Canoe, Roof Bars…

Useful answers

Roof cross-bar fitment questions

Start with the roof attachment and the accessory you want to carry.

Why do raised rails and flush rails need different roof-bar fittings?

A raised rail leaves space underneath, while a flush rail sits close to the roof and needs a different attachment arrangement. An adjustable bar does not resolve that difference. Identify the actual roof and use a kit confirmed for its mounting points, including the vehicle version where relevant.

Is the stated bar length the width available for my roof box?

Not necessarily. Feet, end fittings and the accessory’s clamps can reduce the usable area. Compare bar profile and usable width, plus the permitted distance between bars for the box. A long bar can still be unsuitable for the accessory or the roof’s required mounting positions.

Can soft roof pads replace cross bars for any roof accessory?

No. Pads support particular loads using their own strap arrangement; they are not automatically a mounting base for a hard-clamped box or bike holder. Choose the system the accessory is designed to use, and establish the relevant vehicle and rack limits before adding cargo.
