The Baumr-AG DP13 Series II is a bench-mounted drill press, not a separate drill stand or a floor-standing/benchtop hybrid. Its current listing specifies a 420W motor, a 13 mm chuck and a 12 kg product weight. Compare the workpiece, bit and bench arrangement before deciding whether it suits your workshop.
Check capacity and workpiece support
The listed drill travel is 50 mm, with 220 mm from spindle to table and 302 mm from spindle to base. The height-adjustable table tilts up to 45 degrees in either direction. Check these limits against the complete workpiece and the room needed for the bit and clamping equipment.
The product dimensions are listed as 19 × 30 × 60 cm. The operating area must also accommodate the workpiece, controls and required clearance. A compact footprint does not make the unit suitable for operation on an unsecured or unsuitable bench.

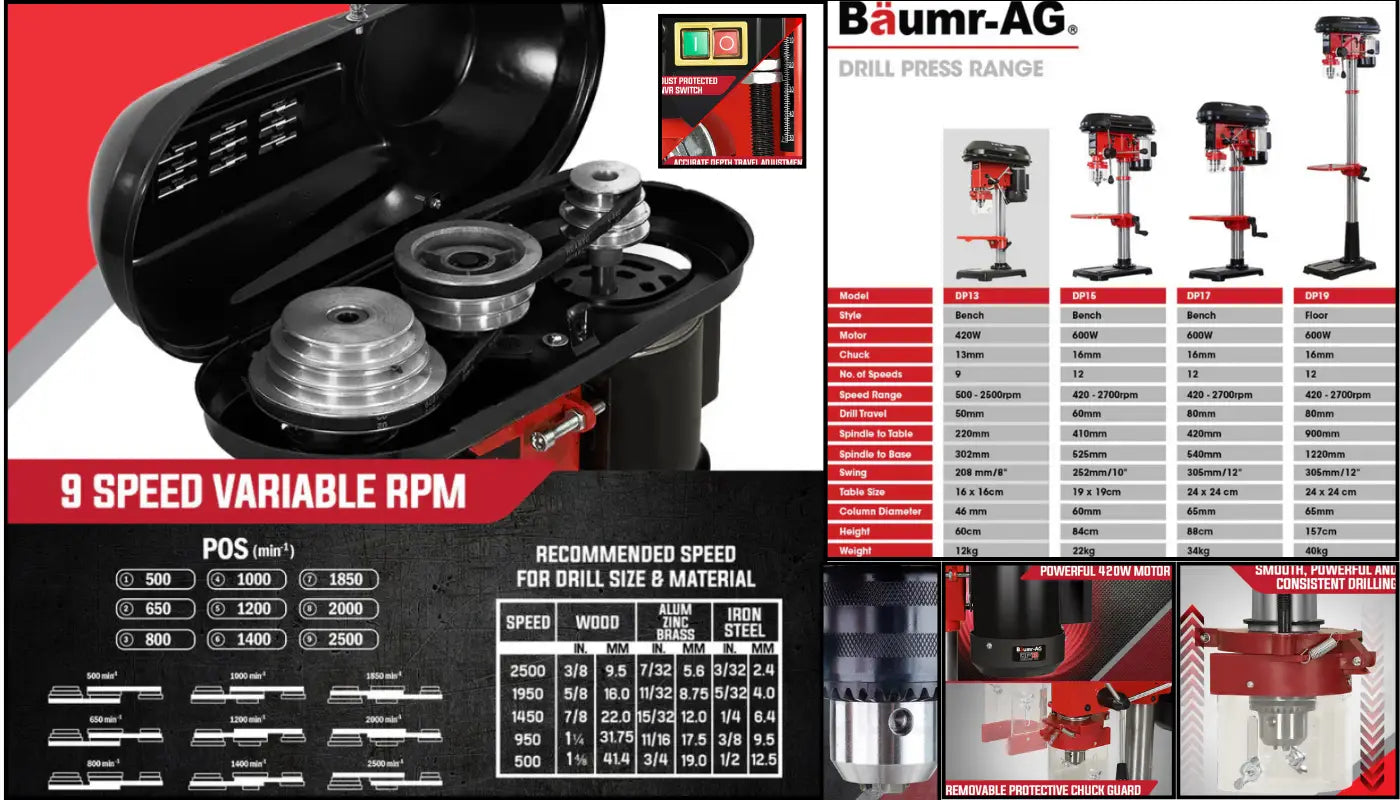

Nine specified speed settings
The listing provides nine speeds: 500, 650, 800, 1,000, 1,200, 1,400, 1,850, 2,000 and 2,500 rpm. These are discrete settings, not evidence of continuously variable speed. Select the setup using the manual and appropriate guidance for the material and bit. Isolate the machine as instructed before changing its setup; do not adjust moving machinery.
Secure the material before drilling
CCOHS drill-press guidance calls for clamping or securing the workpiece instead of holding it by hand. Remove the chuck key before starting, keep guards in place and follow the instructions for clothing, eye protection and keeping clear of rotating parts.

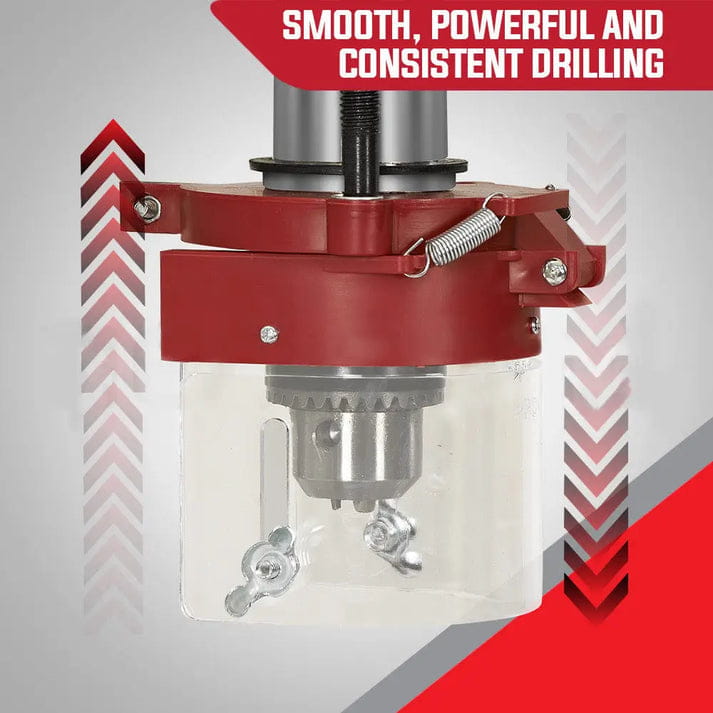

The product lists a chuck guard and dust-protected no-volt-release switches. These are features to understand, not a guarantee that a beginner or any workpiece is safe. Do not bypass the guard or improvise a holding arrangement.
What is supplied?
The package lists the DP13 Series II drill press, a chuck key and an Allen key; the user manual is accessible online. Confirm suitable bits, clamps and any other task-specific equipment separately. Cast-iron base construction was not established in the current specifications, so compare the documented mounting requirements rather than relying on that earlier claim.
Choose the tool for work within its capacity and for a bench where it can be installed correctly. Check the current product page for price and availability; this guide does not assert a limited-time sale.
